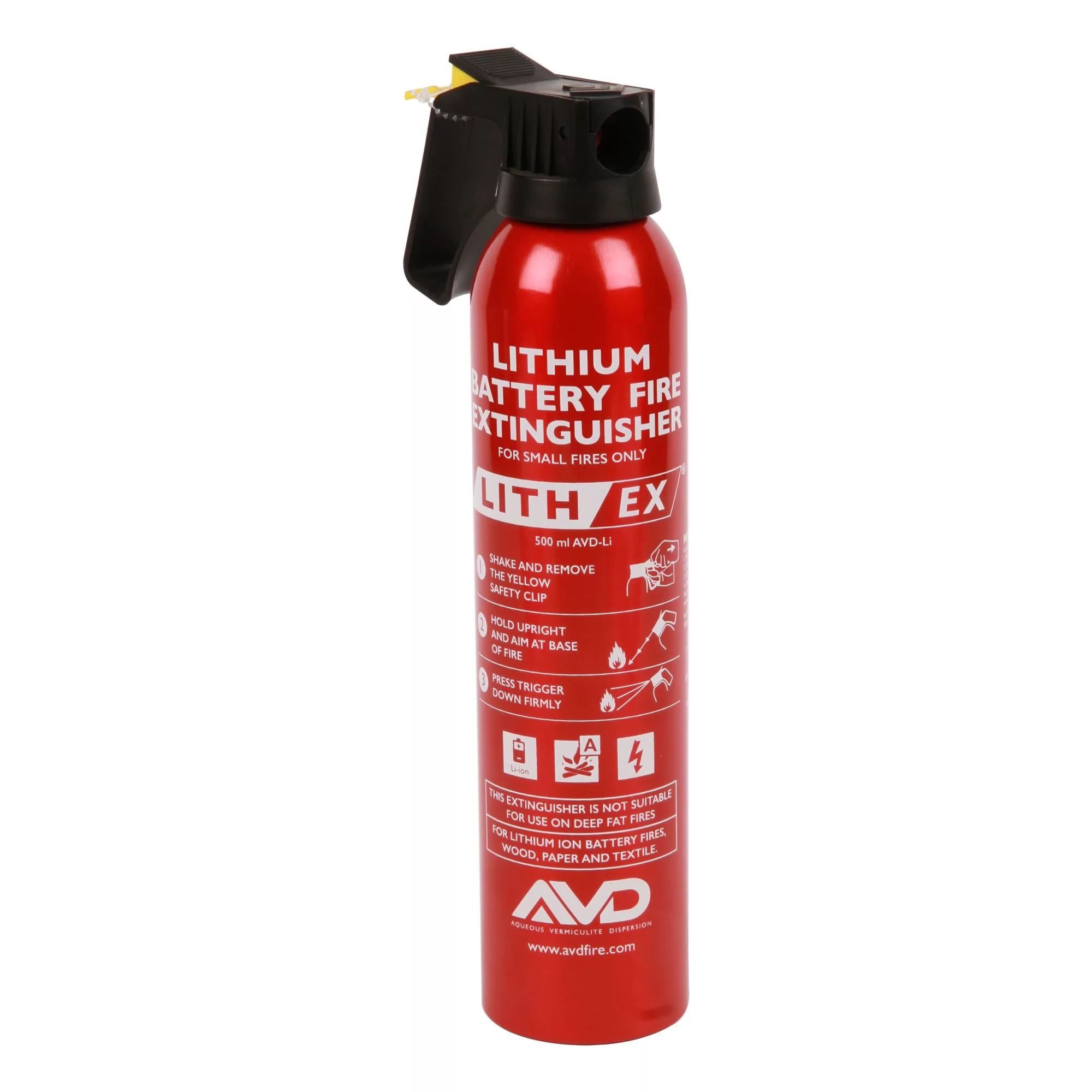

Lith-Ex Aerosol Fire Extinguisher
A high-performance aerosol fire extinguisher designed to combat lithium battery fires fast.
Videos
Instructional Video
A brief video to show how to operate an AVD Aerosol Fire Extinguisher.
iPhone fire
iPhone extinguished with a Lith-Ex 400 ml Aerosol
Further videos can be found on our videos page.
Downloads
Click to download a file.
Technical Specification for Aerosol
Lith-Ex Aerosol User Guide (English)
Lith-Ex Aerosol User Guide (French)
Lith-Ex Aerosol User Guide (German)
Lith-Ex Aerosol User Guide (Italian)
Lith-Ex Aerosol User Guide (Portugese)
Lith-Ex Aerosol User Guide (Spanish)
Lith-Ex Aerosol User Guide (Chinese)
Further downloads can be found on our downloads page.
Effectively protect against and extinguish lithium battery fires. The Lith-Ex aerosol extinguisher provides portable lithium battery fire protection that fights the flames and prevents the propagation of fire.
AVD lithium battery protection delivers results that are unachievable when using conventional extinguishing agents. Applied in the form of a mist, the AVD agent acts as a fire break by cooling and extinguishing the flames, fast. The Lith-Ex aerosol fire extinguisher is designed for safe use on small personal devices. Make an enquiry to discuss your lithium-ion battery fire suppression system today.
| Model | Lith-Ex Aerosol |
|---|---|
| Extinguishing Agent | AVD-Li |
| Volume of Extinguishing Agent | 500 ml |
| Mass of Extinguishing Agent | 545 g |
| Canister Volume | 794 ml |
| Unit Weight (excluding clip) | 690 ±15 g |
| Unit Height | 300 mm |
| Unit Width (including Handle) | 95 mm |
| Aerosol Width | 65 mm |
| Minimum Working Temperature | 5 °C |
| Maximum Working Temperature | 50 °C |
| Discharge Time | ≤90 s |
| Discharge Range | ≤2 m |
| Propellant Gas | Nitrogen |
| Operating Pressure* | ~10.8 bar |
| Dimensions Packaged Unit (l * w * h) | 100 x 72 x 320 mm |
| Units per Box | 6 |
| Dimensions 6 Units Box (l * w * h) | 250 x 230 x 320 mm |
The manufacturer and supplier reserve the right to change the design and/or specification without prior notice.
Available Sizes of Lithium Battery Fire Extinguishers
Our lithium battery fire extinguishers are effective across a range of applications. Lith-Ex extinguishers are
also available in the following sizes:
Lith-Ex 1 Litre Fire Extinguisher
Our 1 litre fire extinguisher provides effective lithium battery fire protection.
View Product
Lith-Ex 2 Litre Fire Extinguisher
The Lith-Ex 2 litre fire extinguisher provides fast results to protect against the unique threat posed by lithium battery fires.
View Product
Lith-Ex 6 Litre Fire Extinguisher
A high-performance 6 litre fire extinguisher designed to combat lithium battery fires fast.
View Product
Lith-Ex 9 Litre Fire Extinguisher
A high-performance fire extinguisher designed to combat lithium battery fires fast.
View Product
