Specifically designed as a solution to the threat caused by lithium battery fires. Defend against damage and safely control the flames with a Lith-Ex trolley unit, the first choice for lithium battery fire protection.

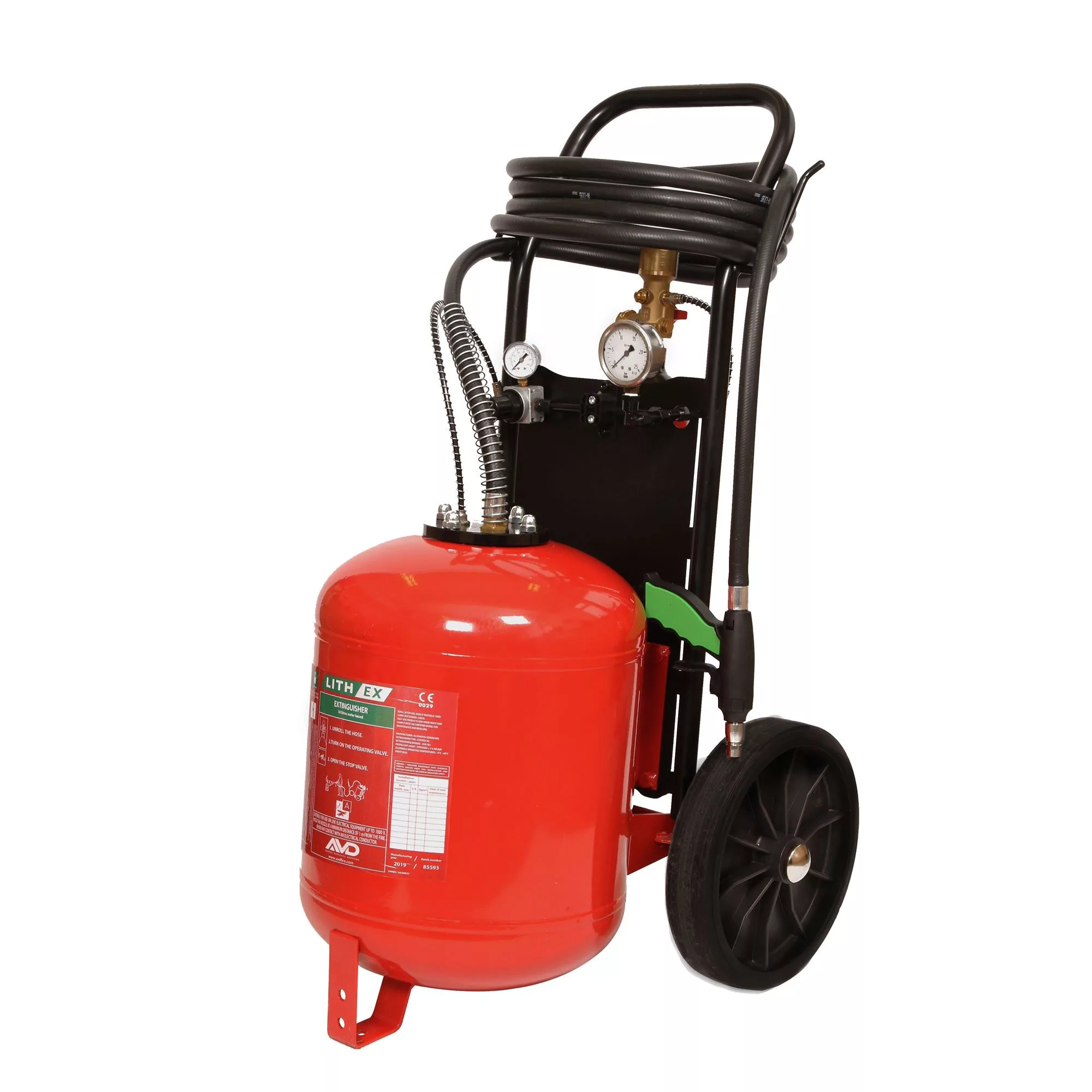

Achieve results that are unobtainable with conventional extinguishing agents and prevent the propagation of fire with a Lith-Ex 25 or 50 litre trolley fire extinguisher unit.
AVD is a pioneering fire extinguishing agent that has been tried and tested as effective lithium battery fire protection.
Lith-Ex fire suppression technology is suitable for use in factories, offices and other locations where there are significant numbers of lithium battery devices.
Make an enquiry to discuss your lithium battery fire suppression system today.
*Pressure refers to gauge pressure
| Model | 25 Litre Trolley Unit |
|---|---|
| Agent Volume | 25 Litres |
| Agent Weight (approx.) | 27.5 kg |
| Total Weight of Unit | 55 kg |
| Total Height | 970mm (±10 mm) |
| Total Width | 558 mm |
| Total Diameter Canister | 350 mm |
| Typical Hose Length | 5 metres |
| Operating Temperature | +5°C to +60°C |
| Discharge Time (approx.) | 3.5 minutes |
| Discharge Range (approx.) | 5 metres |
| Operating Pressure * | 8 bar |
| Supply Bottle (bar) | 160 |
| CE / PED? | Yes |
| Propellant | Nitrogen (He Tracer) |
The manufacturer and supplier reserve the right to change the design and/or specification without prior notice.
Proven results on lithium ion batteries
Effectively extinguishes Class A fires
Effectively extinguishes flammable metal fires
Environmentally-friendly product
