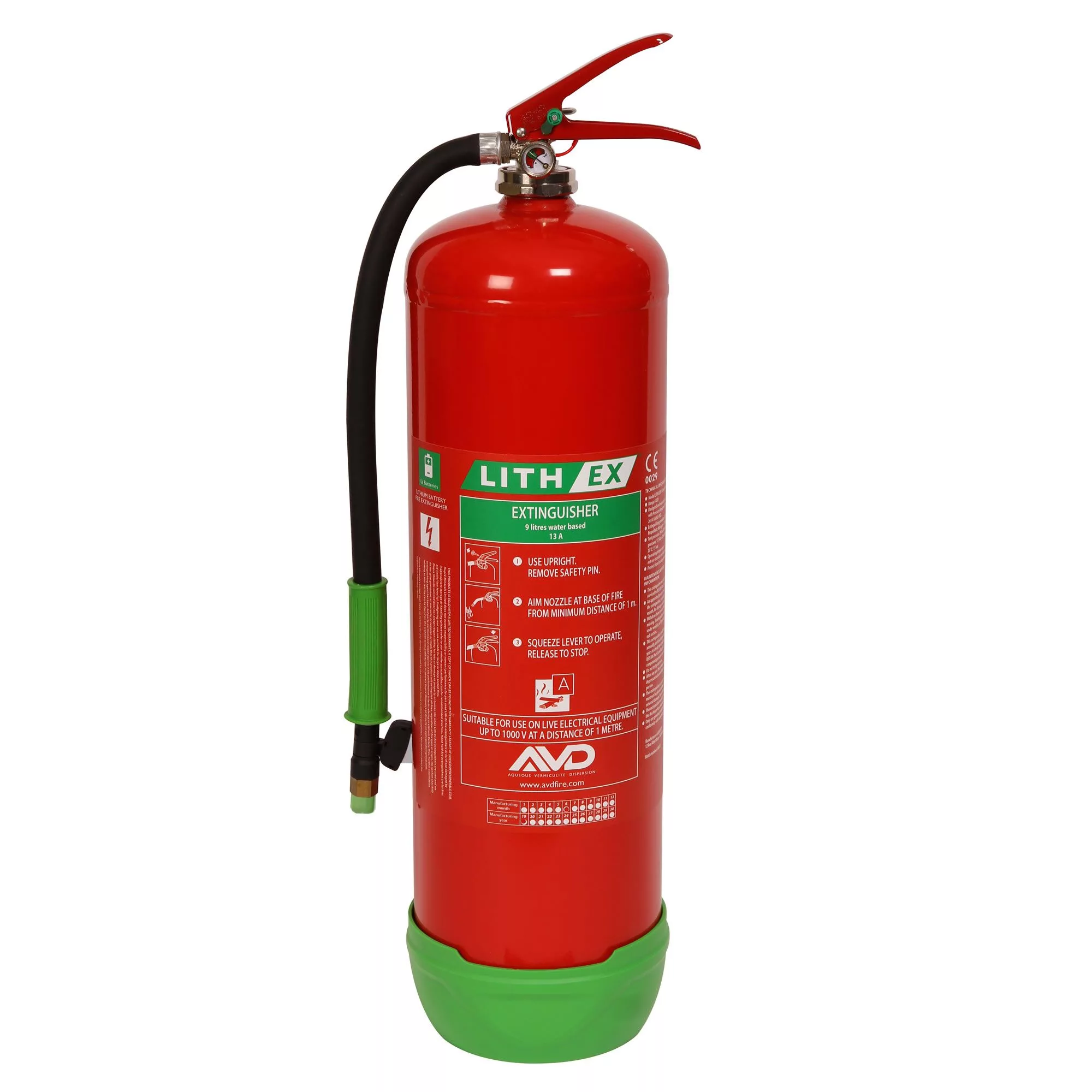

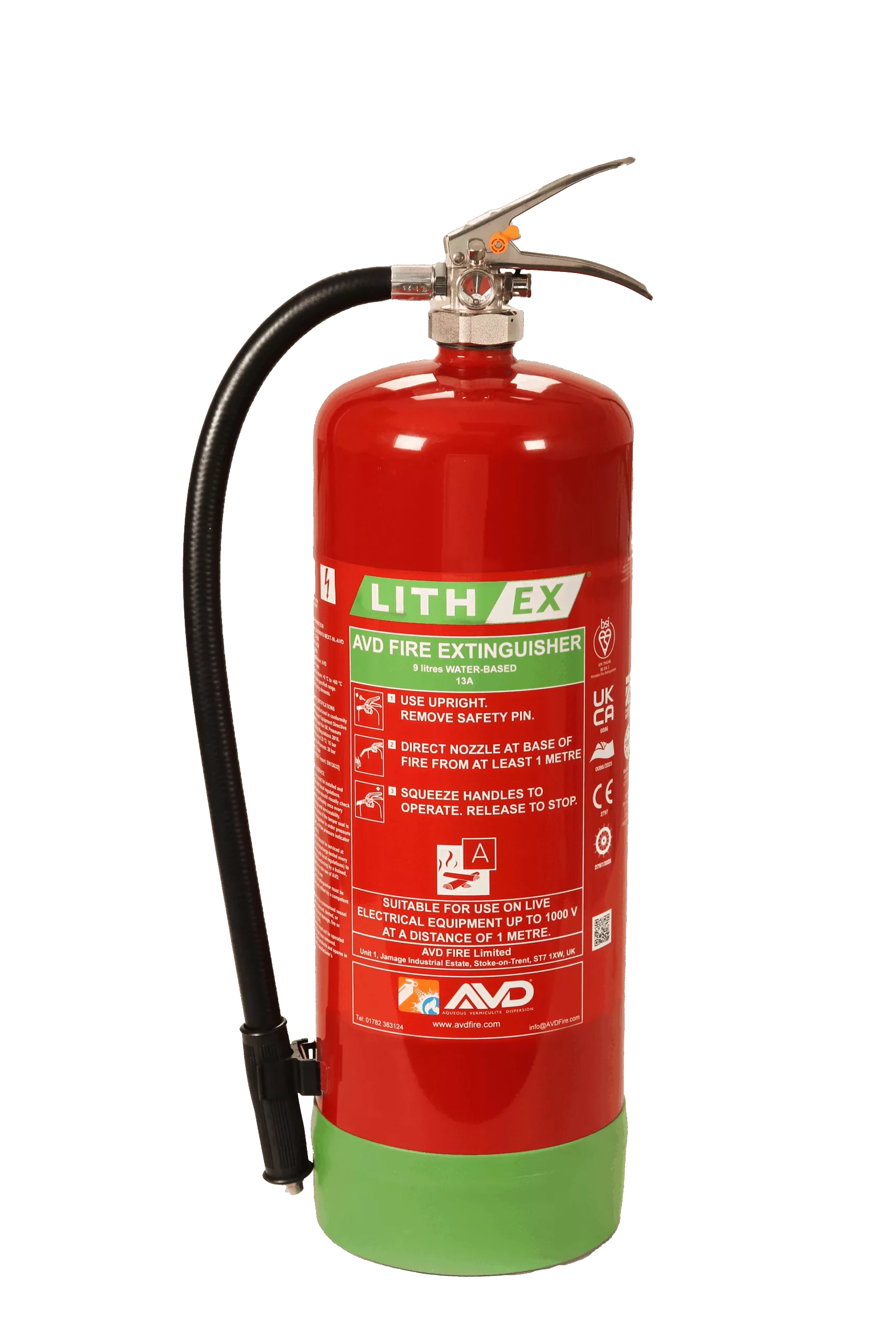

Lith-Ex 9 Litre Fire Extinguisher
A high-performance fire extinguisher designed to combat lithium battery fires fast.
Videos
Videos can be found on our videos page.
Downloads
Click to download a file.
Technical Spec for Extinguishers
Further downloads can be found on our downloads page.
Specifically designed as a solution to the threat caused by lithium battery fires. Defend against damage and safely control the flames with Lith-Ex, the first choice for lithium battery fire protection.
Achieve results that are unobtainable with conventional extinguishing agents and prevent the propagation of fire with a Lith-Ex 9 litre fire extinguisher. AVD is a pioneering fire extinguishing agent that has been tried and tested as effective lithium battery fire protection. Lith-Ex fire suppression technology is suitable for use in factories, offices and other locations where there are significant numbers of lithium battery devices.
Make an enquiry to discuss your lithium battery fire suppression system today.
*Pressure refers to gauge pressure
| Model | Lith-Ex 9 Litre Fire Extinguisher |
|---|---|
| Brim Full Capacity | 11.33 litres |
| Agent Weight (approx.) | 9.9 kg |
| Total Weight of Unit | 15 kg |
| Total Height | 664 mm |
| Total Diameter Canister | 170 mm |
| Operating Temperature | +5°C to +60°C |
| Discharge Time (approx.) | 180 seconds |
| Discharge Range (approx.) | 1.5 to 2 metres |
| Operating Pressure * | 15 bar |
| Extinguishing Agent | AVD |
| Propellant | Nitrogen (He Tracer) |
| Units per Box | 1 |
The manufacturer and supplier reserve the right to change the design and/or specification without prior notice.
